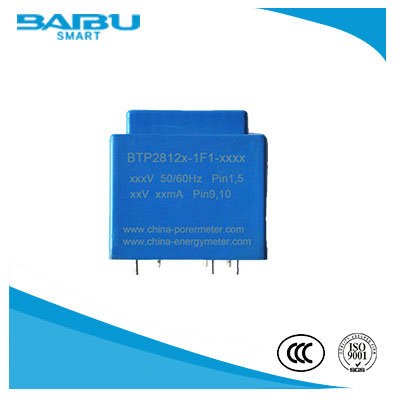

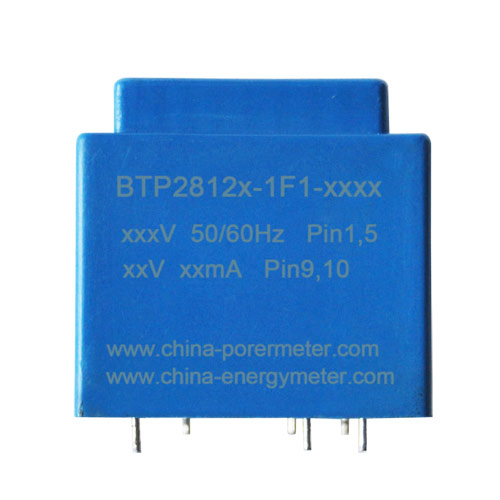

BPT2812x-1F MODEL

Mainly used as power switching tool in single phase and three-phase electronic energy meter, or the other industrial instruments, measuring equipment or home appliance.
It adopts vacuum epoxy sealed encapsulation, excellent waterproof and anti-seismic performance, and good insulating property. It can be dipped rinse by ultrasonic wave.
It adopts high efficiency silicon steel sheet, special plug-in technics and low self-loss.
Wide range of input voltage: 0.7UN-1.9UN, which can avoid misconnection or ground suppression fault etc. abnormal situations.
Enclosure adopts flame resistant material, which meet the UL94V0 flame resistant design.
It satisfies the relative requirement of IEC61036 Energy Meter Standard.

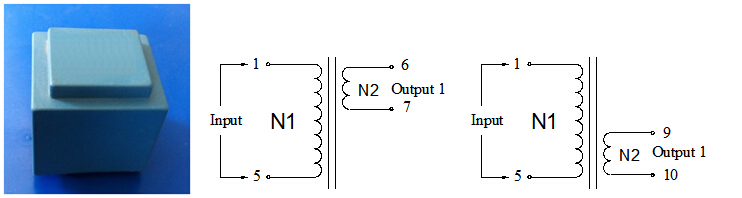

Details description

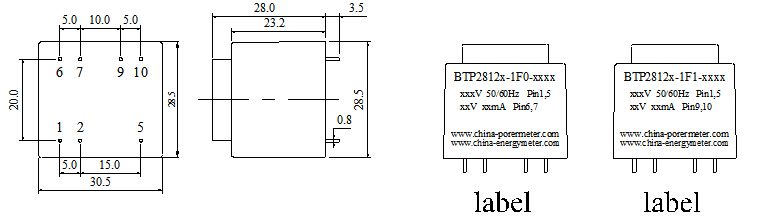

DIMENSION & LABEL

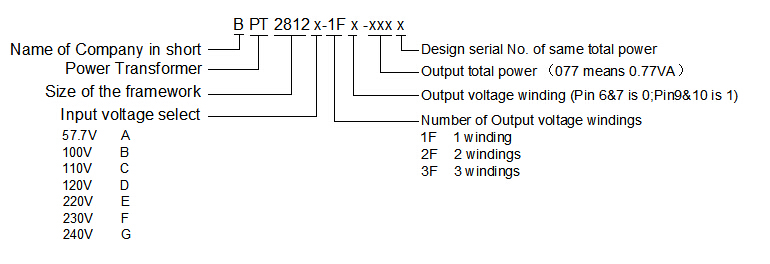

MODEL DEFINITION



COMMON MODEL SELECT TABLE (Un=220V)

MODEL

INPUT

OUTPUT

Rated voltage

Rated frequency

Max voltage

PIN

PIN

Voltage

Current

Power

BPT2812E-1F0-077A

220V

50/60Hz

1.5Un

1-5

6-7

9V±0.5V

85mA

0.77VA

BPT2812E-1F1-077A

220V

50/60Hz

1.5Un

1-5

9-10

9V±0.5V

85mA

0.77VA

BPT2812E-1F0-075A

220V

50/60Hz

1.5Un

1-5

6-7

10V±0.5V

75mA

0.75VA

BPT2812E-1F1-075A

220V

50/60Hz

1.5Un

1-5

9-10

10V±0.5V

75mA

0.75VA

BPT2812E-1F0-083A

220V

50/60Hz

1.5Un

1-5

6-7

11V±0.5V

75mA

0.83VA

BPT2812E-1F1-083A

220V

50/60Hz

1.5Un

1-5

9-10

11V±0.5V

75mA

0.83VA

BPT2812E-1F0-078A

220V

50/60Hz

1.5Un

1-5

6-7

12V±0.5V

65mA

0.78VA

BPT2812E-1F1-078A

220V

50/60Hz

1.5Un

1-5

9-10

12V±0.5V

65mA

0.78VA

BPT2812E-1F0-068A

220V

50/60Hz

1.9Un

1-5

6-7

9V±0.5V

75mA

0.68VA

BPT2812E-1F1-068A

220V

50/60Hz

1.9Un

1-5

9-10

9V±0.5V

75mA

0.68VA

BPT2812E-1F0-070A

220V

50/60Hz

1.9Un

1-5

6-7

10V±0.5V

70mA

0.70VA

BPT2812E-1F1-070A

220V

50/60Hz

1.9Un

1-5

9-10

10V±0.5V

70mA

0.70VA

BPT2812E-1F0-072A

220V

50/60Hz

1.9Un

1-5

6-7

11V±0.5V

65mA

0.72VA

BPT2812E-1F1-072A

220V

50/60Hz

1.9Un

1-5

9-10

11V±0.5V

65mA

0.72VA

BPT2812E-1F0-072B

220V

50/60Hz

1.9Un

1-5

6-7

12V±0.5V

60mA

0.72VA

BPT2812E-1F1-072B

220V

50/60Hz

1.9Un

1-5

9-10

12V±0.5V

60mA

0.72VA


Note: Under the terms of similar output frequency, output voltage and output current can be designed for clients. PLS confirm the exact model or offering relative parameters according to above table.

OTHER PARAMETERS

Model

Isolated withstand voltage

Insulation resistance

Working temperature

Stock temperature

BPT2812x-1Fx-xxxx

N1-N2 withstand voltage≥4000 Vrms

≥1000MΩ(test voltage:500VDC)

-50～+80℃

-55～+85℃


Parameter instruction:
Max input voltage: Under 25℃situation, full load, input the max voltage of this model on the Pin1-5, the transformer will not be broken if power on for 4 hours.

Isolated withstandvoltage: The power transformer that applied within the different windings, duration is 60 seconds, leakage current 5mA, no breakdown, no arcing.

PAKINGDATA

Net /pcs


pcs/CTN


Weight/CTN


Cubage/CTN
