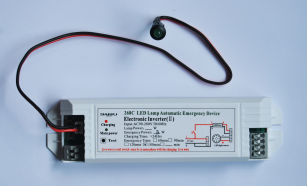

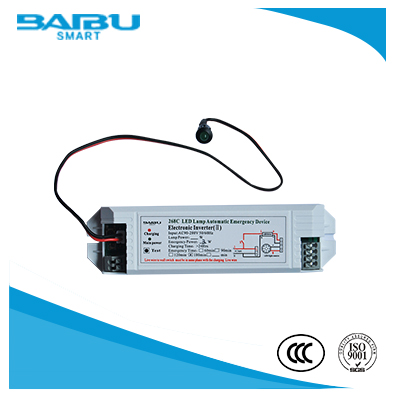

BLK-268C LED EMERGENCY SMART POWER SUPPLY
概述 ◆ 本产品可作为LED照明灯的应急电源。 ◆ 产品可安装在LED显示的吸顶灯内。 ◆ 具有外接电源指示，充电状态指示、LED灯故障灯指示，引出线安装。 ◆ 具有外接测试按键，可随时检查设备工作状态。◆ 本产品可配合人体红外感应开关、智能雷达开关等配合安装，轻松实现智能感应照明、应急照明于一体。
Details description
BLK-268C LED EMERGENCY SMART POWER SUPPLY
SPECIFICATON
l This product can be used as LED emergency light power supply
l Installed in the LED ceiling light.
l External power supply indicate, charging state indicate, fault light indicate, out going line installation
l External testing button, which can check the working state of equipment at any time
l This product can be fit for installation with infrared body sensor switch and smart radar switch etc., which easily achieve combining with smart sensor lighting and emergency lighting.
FEATURES
l Setup different emergency power, voltage, current and working time based on the LED
l There is high-energy battery inside; the working temperature range is wide.
l External LED driving power supply, which associated with switch used for normal lighting (not emergency mode)
l Easy for installation, long emergency time, safe and reliability
l Automatically testing mode, one time short test every week, one time capacity test every 6 months
l Protection of battery polarity reversal and deep discharge
l Open-circuit fault of LED light indication
l Charging state indicate
l External power supply indicate
l Optional manual experiment switch
l Material of enclosure is PC
TECHNICAL SPEC.
l Rated power voltage: 90V-280V
l Rated frequency: 50Hz, 60Hz
l Stand-by consumption: ≤0.5W
l Power factor: ≥0.87-0.95
l Over-voltage protection: 320V
l Power of emergency LED：3W
l Discharge time ≥3 hours
l LED forward voltage range: 18-46v
l Output current (constant current) 100mA (adjustable)
l Battery’s spec. 1800mAh，7.2V
l Charging time ≤24 hours
l Working life: not less then 5 years (except battery)
l Size of the appearance (mm): emergency control box 150*40*30, battery inside
WORKING ENVOIRENMENT:
l Working temperature: -20℃~55℃
l Max temperature of enclosure≤70℃
l Limit working temperature: -25℃~60℃
l Protection class: IP 20
l Store and ship temperature: -30℃~70℃
l Relative humidity:：=<95%
l Atmospherie pressure：63kPa~106.0kPa
