Details description

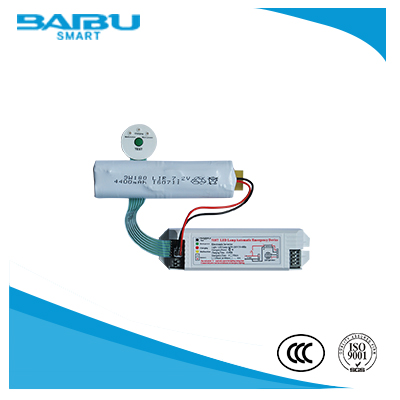

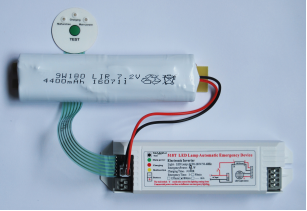

BLK-518T LED EMERGENCY CONVERSION KIT

SPECIFICATON

l This product can be used as LED emergency light power supply

l Installed in the LED ceiling light.

l External power supply indicate, charging state indicate, fault light indicate, out going line installation

l External testing button, which can check the working state of equipment at any time

l This product can be fit for installation with infrared body sensor switch and smart radar switch etc., which easily achieve combining with smart sensor lighting and emergency lighting.

FEATURES

l Setup different emergency power, voltage, current and working time based on the LED

l There is high-energy battery inside; the working temperature range is wide.

l External LED driving power supply, which associated with switch used for normal lighting (not emergency mode)

l Easy for installation, long emergency time, safe and reliability


l Automatically testing mode, one time short test every week, one time capacity test every 6 months

l Protection of battery polarity reversal and deep discharge

l Open-circuit fault of LED light indication

l Charging state indicate

l External power supply indicate

l Optional manual experiment switch

l Material of enclosure is PC


TECHNICAL SPEC.

l Rated power voltage: 90V-280V

l Rated frequency: 50Hz, 60Hz

l Stand-by consumption: ≤0.5W

l Power factor: ≥0.87-0.95

l Over-voltage protection: 320V

l Power of emergency LED：3W/6W

l Discharge time ≥9 hours (3W)/4.5 hours (6W)

l LED forward voltage range: 18-46v

l Output current (constant current): 300mA/100mA (adjustable)

l Battery’s spec. 4400mAh，7.2V

l Charging time ≤24 hours

l Working life: not less then 5 years (except battery)

l Size of the appearance (mm): emergency control box 150*40*30, battery 150*38*20


WORKING ENVOIRENMENT:

l Working temperature: -20℃~55℃

l Max temperature of enclosure≤70℃

l Limit working temperature: -25℃~60℃

l Protection class: IP 20

l Store and ship temperature: -30℃~70℃

l Relative humidity:：=<95%

l Atmospherie pressure：63kPa~106.0kPa
